90°Bends Malleable Iron Pipe Fittings

Malleable Iron Pipe Fittings Factory:Shijiazhuang Sunny Trading Co., Ltd.

Malleable Iron Pipe Fittings

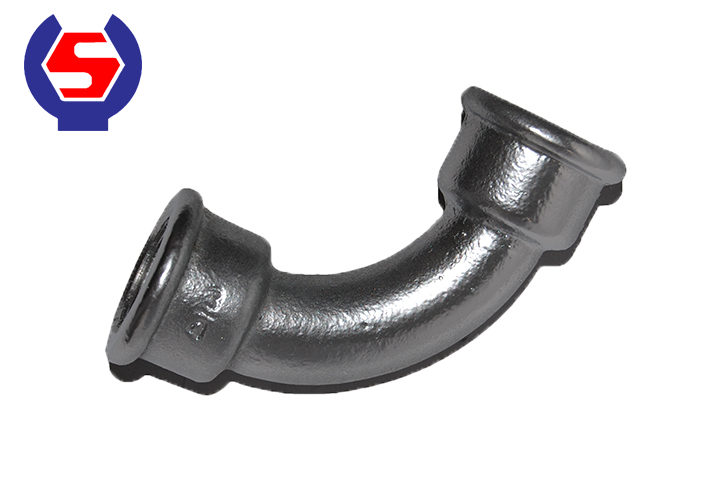

FIG NO. 2# Bend 90°Female

Female Malleable Iron Pipe Fittings

Material Black heart malleable iron

Surface Treatment a. Black (as cast)

b. Galvanized (hot dip zinc coating)

c. Epoxy painting (250-300 Microns)

DIN Standard(According to EN10242) Exported to many European countries

Materials: DIN1692

Dimensions:DIN2950,EN10242,ISO49

Threads: DIN2999

American Standard Export to North and South American countries

Materials: ANSI/ASME A197-79

Dimensions:ANSI/ASME B16.3-85

Threads: ANSI/ASME B1.20.1

British Standard Export to Middle East countries

Dimensions: BS EN 10242, BS 143&1256

Threads: ISO 7/1

ABNT 6943 Standard Export to Brazil

Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65),

(P%
