Grid arch ，as a kind of tunnel arch is commonly used in highway, railway tunnel, and the initial support in mine roadway construction . However, with complex shape，huge number, difficult processing and intensity workers labor, 8-Shaped Rebar molding Machine is the important part of grid arch. People from SKZ has been constantly dedicated to the development of the automatic steel bending machine.We focus on the special shape and requirements of 8-Shaped Rebar molding Machine, base on the original and make the original complex processing more simple, standard, efficient and energy saving. We visit processing site and truly understand many difficulties of the traditional processing and realize that advanced ideas and elements in modern manufacturing should be introduced into the design,that is lean production, which means the product of any processes has no accumulation ( do not take place), the product does not need human-powered transport,so that make our products a real sense of flow , make a better use of the space for production site , therefore ,the entire production line is neat harmonious and corporate image can be improved radically.Grid arch ，as a kind of tunnel arch is commonly used in highway, railway tunnel, and the initial support in mine roadway construction . However, with complex shape，huge number, difficult processing and intensity workers labor, 8-Shaped Rebar molding Machine is the important part of grid arch.

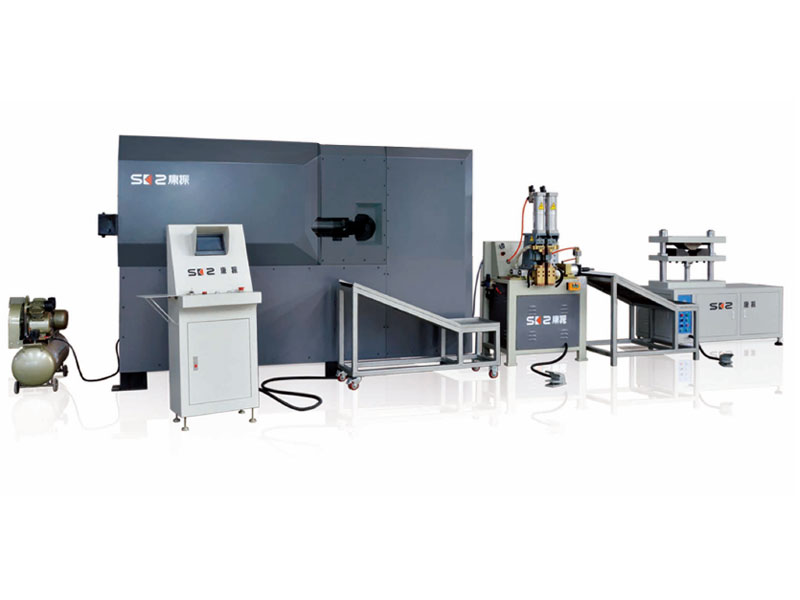

8-Shaped Rebar melding Machine 8-Shaped butt welding machine Butterfly Bar hydraulic forming machine

Model KHD16BX Model KDH125X Model KDX100K

Bending bar diameter φ14 φ16 Butt welding bar diameter φ14 φ16 Oil Cylinder speaficabons (mm) φ100×200

Nomal force (KN) 100

Maximum feed speed (m/min) 60 Production efficiency (pcs/h) 300 Maximum stroke (mm) 200

Maximum opening size (mm) 280

Production efficiency (pcs/h) 200 Rated capacity (KVA) 125 Oil Cylinder downstream speed (mm/s) 60

Rated power (KW) 25 Maximum forging force (KN) 40 Oil Cylinder upstream speed (mm/s) 60

Working environment temperature (°C) -5-40 Maximu m feeding schedute (mm) 40-50 Working surface height (mm) 860

Cylinder Pressure (MPa) ≤0.6 Cooling water consumption (L/H) 300 Working surface size (mm) 590×300

Dimension (LtW,H) (mm) 3150x1200x2000 Dimension (L*W*H) (mm) 1770x1655x1230 Hydraulic oil capacity (L) 80
