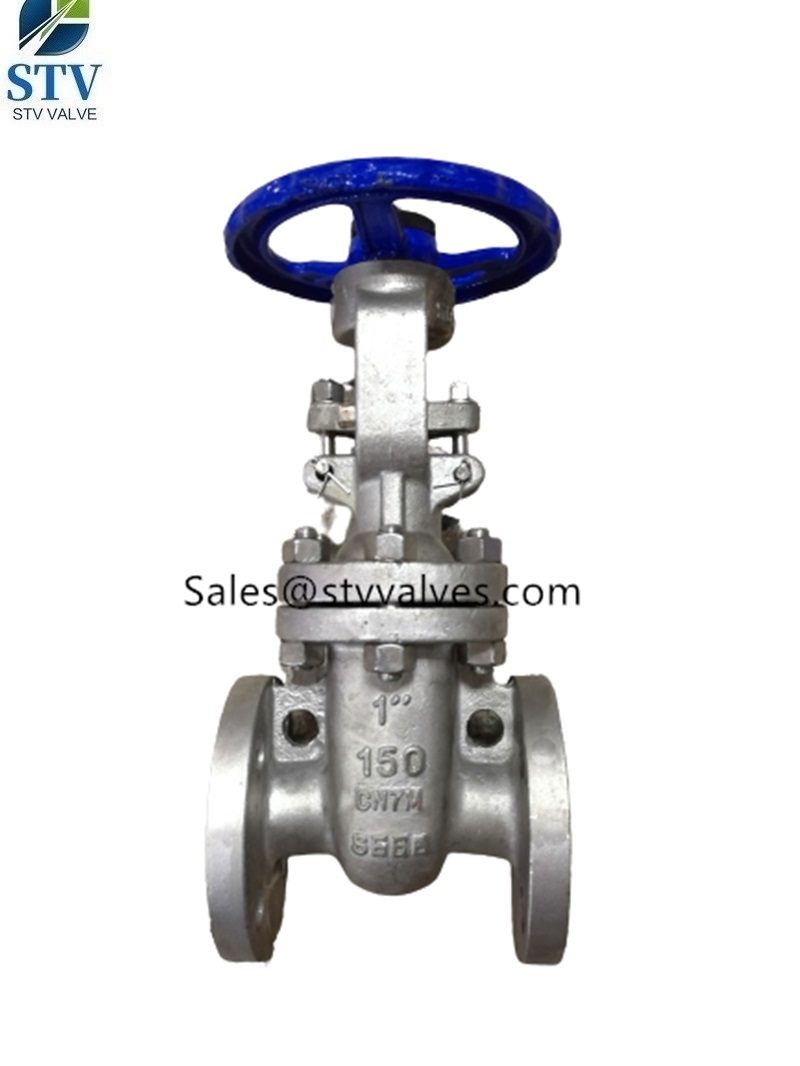

150LB CN7M Gate Valve, 1 Inch, Flanged End

গেট ভালভ

$ 100 USD / টুকরা

এক্সপ্লোর পরিচালনা

12 মাস (গণ)

চীন

জিজ্ঞাসা করা

পণ্যের বিবরণ

STV Valve Technology Group Co., Ltd is a professional leader CN7M Gate Valves ,CN7M Gate Valve in China,150LB CN7M Gate Valve,Duplex Gate Valve, Handwheel Gate Valve,1 Inch Gate Valve.

Categories: GATE VALVE, Stainless Steel Gate Valve Tags: 1 Inch Gate Valve, 150LB CN7M Gate Valve, CN7M Gate Valve in China, CN7M Gate Valves, Duplex Gate Valve, Handwheel Gate Valve .

Description

Products Name: 150LB CN7M Gate Valve, 1 Inch, Flanged End

Design: API 6D

Body: CN7M

Nominal Size: 1 Inch

Nominal Class: 150 LB

End Connection: RF Ends

Face to Face: ASME B16.10

Size: from 2″ to 36″

Pressure: 150 – 2500LB

Material: Duplex S31803、Super Duplex S32750、Super Duplex S32760

1A、、2A、3A、4A、5A、6A、1B、1C

CD4MCu、CD4MCuN、CD3MCuN、CE8MN、CD6MN、CD3MN、CE3MN、CD3MWCuN

F51、F53、F55、F6Design and production standard: API 600, API6D and ASME B16.34

Distance between flanges: API 6D, ASME B16.10

Connected in accordance with standard: ANSI B16.5, ASME B16.47, ANSI B16.25

Test standard: API598

Medium: the valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.

Working temperature: from -46ºC or -50ºC (stainless steel constructions) and -29ºC or -46ºC (carbon steel constructions) up to 600℃

Product Name 150LB CN7M Gate Valve, 1 Inch, Flanged End

1. Material CN7M

2. Size 2”

4. Port Full Port

5. Working Pressure 150LB

6. Connection Ends RF

7. Working Temp. -29~250ºC,

8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid

9. Operated Handwheel

10. Inspection & Testing According toAPI 598

Shipment

Delivery Time 30 Days

Package Standard Exporting Plywood Case

Shipping Port Ningbo/Shanghai, China

Shipping Terms Exw, FOB, CFR, CIF, etc.

Payment Terms T/T, Western Union, PayPal, etc.

30% prepayment, 70% balance paid before shipping

Country of Origin Wenzhou city, China

Production Capacity 6000 ton/year

MOQ 10 PCS/size

https://www.stvvalves.com/products/150lb-cn7m-gate-valve-1-inch-flanged-end/
