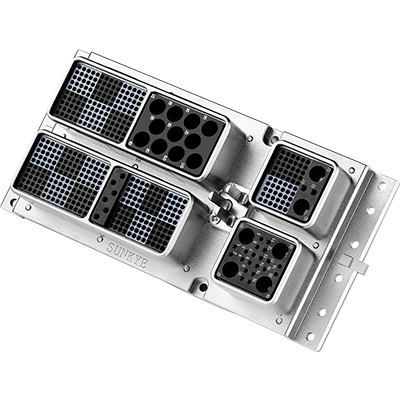

Sunkye ARINC 600 16 Rack&Panel Rectangular Connector

Good performance of environment resistance

216 kinds of anti-misoperation styles

High density up to 800 signal contacts

Low insertion force contacts

Brief introduction of Sunkye ARINC 600 Rack & Panel Rectangular Connector

Mounting panel are insulator modules for free collocation.

Apply to aviation and military equipment cabinet

Be compatible with arinc 600 backshell to provide protection against harsh operating conditions.

Accord to ARINC 600 Specification

Contacts: signal, power, coaxial, tripe coaxial, optical fiber 2 pin differential, 4 pin differential

Standard: ARINC 600 standard

Specification of Sunkey ARINC 600 Rack & Panel Rectangular Connector

1. Material and surface treatment

ltem Material Plating

Shell Aluminum alloy ——

insulator PPS plastic ——

Contact Copper alloy Gold-plated

Encapsulant & sealed ring Silicon rubber ——

2. Mechanical properties

Durability: 500 times

Vibrations: 10Hz~ 2000Hz, 196 m/s²

Shock: 490 m/s²

Insertion and extraction force:

type 1 connector: ≤120 N;

type 2 connector:≤267 N;

type 3 connector:≤467 N;
