Advantages

Class I,Div.2,Group A,B,C,D

Zone 2

Class II,Div.1,Group E,F,G

Zone 21, Zone 22-40℃ ~ +55℃

Class III

Type 4X, IP66

Ex eb op is IIB T6/T5 Gc

LED 40W- 150W,140lm/W,2700K-5000K

Ex op is tb IIIC T80℃ Db IP66

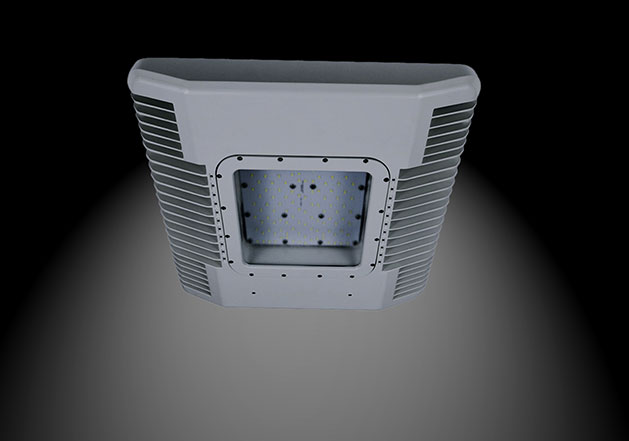

Designed with a squared shape for ceiling mounted as petrol pump canopy led lights, SCP series gas station canopy lights are the classic one among gas station lights featuring light weight housing and high lumens led explosion lamp, this model become the stable market needs for led canopy lights for gas station specially and a more and more bigger trend from explosion proof lighting and explosion proof led lights.

Features

Explosion Proof Flood Light SCP Series

Extra air vent to improve the heat elimination performance

02

Thin housing and aesthetic looking for petrol pump booth

03

High concentration led layout for excellent area lighting

Selection Table

Explosion Proof Light Fixture SCP Series

Model Lumens Wattage Lumens per Watt Equivalent HID Luminaire

SCP-40W 4800 40W 120 100-150W

SCP-60W 7200 60W 120 175-250W

SCP-80W 9600 80W 120 320-400W

SCP-100W 12000 100W 120 400W

SCP-120W 14400 120W 120 400-600W

SCP-150W 18000 150W 120 600-750W

Data Sheet

Explosion Proof Flood Light SCP Series

Compliance IEC Standard

IEC60079-0, IEC60079-2, IEC60079-6, IEC60079-7, IEC60079-11

Ex eb op is IIB T6/T5 Gc

Ex op is tb IIIC T80℃ Db IP66

Zone 2

Zone 21, Zone 22

EU Standard

EN60079-0, EN60079-2, EN60079-6, EN60079-7, EN60079-11

II 2 G Ex eb op is IIB T6/T5 Gc

II 2 D Ex op is tb IIIC T80℃ Db IP66

Zone 2

Zone 21, Zone 22

NEC & CEC Standard

Class I, Div.2, Group A, B, C, D

Class II, Div.1, Group E, F, G

Class III

UL Standard

UL844, UL1598, UL1598A

CSA Standard

CSA C22.2 No.137

Rated Voltage 100-277V AC 50/60Hz

DC12-36

Wattage(W) 40W 60W 80W 100W 120W 150W

Lumens(LM) 4800 7200 9600 12000 14400 18000

Color Temperature 5000K/4000K/3000K

IP Grade Wet Locations, Type 4X, IP66

Ambient Temperature -40℃~ +55℃ /-40°F ~ +131°F

Cable Entry NPT 3/4” or M25X1.5 (adaptor for M20x1.5, NPT 1”, NPT1 1/2”)

Terminals Terminal blocks ≤ 2.5mm², cable diameter 10-14mm

Mounting Type Pendant / Sling

Beam Angle 120° / 90° / 60° / 40°

Mounting

Explosion Proof Flood Light SCP Series

Mounting of Explosion Proof Led Flood Light SCP Series

SCP

Mounting of Explosion Proof Led Flood Light SCP Series

P-Pendant Type

Mounting of Explosion Proof Led Flood Light SCP Series

S-Sling Type
