Class I Division 1,Group A,B,C,D

Zone 1,Zone 2

Class II Division 1,Group E,F,G

Zone 21, Zone 22

Class III

-40℃ ~ +55℃

Ex d IIB T6 Gb

Type 4X，IP66

Ex t IIIB T85℃ Db IP66

LED 30W- 200W,120lm/W,3000K-5000K

With well-constructed aluminum housing, SHF-I series explosion light fixture, as a prevalent model of explosion proof ip66 led flood light, are rigid demand for refinery lighting and paint booth lights to brighten the large space for hazardous lighting solutions. In order to serve lighting solutions for upstream oil and gas and downstream gas station lights, lighting zone are designed for class 1 div 1, class 1 div 2, class 2 division 1 and class 2 division 2, atex zone can be also zone 1 and zone 2 as atex led floodlight.

Features

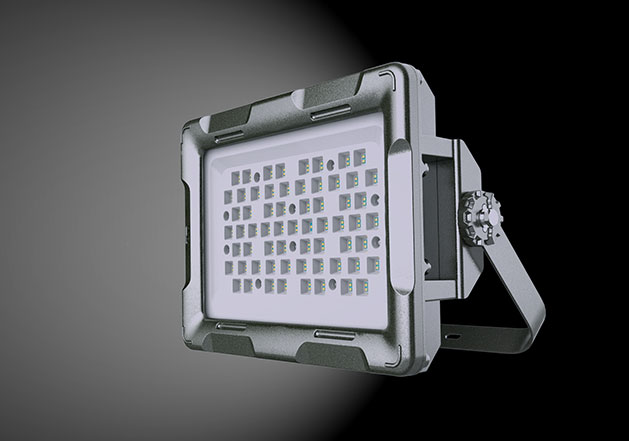

Explosion Proof Flood Light SHF-I Series

01

Adjustable lighting angle to direct to any requested points

80 Watt Led Flood Light

02

Wide-spread and large-area heat dissipation structure for stable working

800 Watt Led Flood Light

03

Separate small lens for every led chips unit to reduce light waste

80W Led Floodlight

04

Isolated high intensive flame proof aluminum housing for led driver

90 Watt Flood Light

Selection Table

Explosion Proof Flood Light SHF-I Series

Model Lumens Wattage Lumens per Watt Equivalent HID Luminaire

SHF-I-30W 3600 30W 120 70W

SHF-I-40W 4800 40W 120 100W

SHF-I-60W 7200 60W 120 150W

SHF-I-80W 9600 80W 120 175-250W

SHF-I-100W 12000 100W 120 320-400W

SHF-I-120W 14400 120W 120 400W

SHF-I-150W 18000 150W 120 400W-600W

SHF-I-200W 24000 200W 120 1000W

Data Sheet

Explosion Proof Flood Light SHF-I Series

Now the price of external led flood lights is reasonable, if you have needs to buy external floodlight, please contact us.

There are many explosion proof light fixtures manufacturers in China, but we are one of the best choices for you.
