Class I, Div. 1, Groups C, D

Ex t IIIC T80℃ Db IP66

Class I, Div. 2, Groups A,B,C,D

Zone 1,Zone 2

Class II, Div. 1, Groups E,F,G

Zone 21, Zone 22

Class II, Div. 2, Groups F,G

-40℃ ~ +55℃

Class III

Type 4X, IP66

Ex d IIC T6 Gb

LED 20W- 200W,140lm/W,2700K-5000K

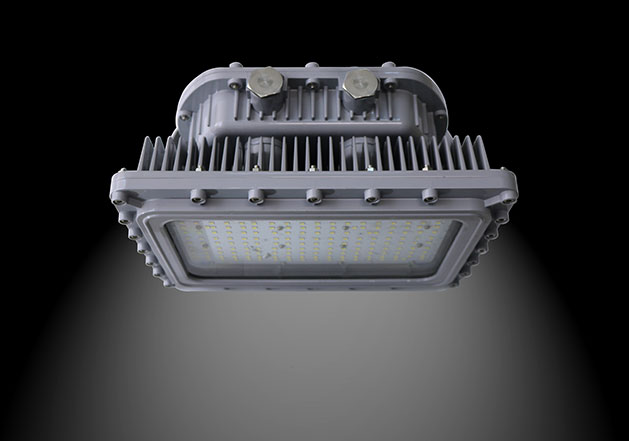

Aiming to develop a perfect class 1 div 1 explosion proof flood lighting SHF-IA series, SUREALL optimize the flame proof housing structure to create an updated explosion proof lighting with stable heat dissipation fins and perfect industrial led explosion lamp for flame proof light family. It can also used as explosion proof spot light, paint booth lights, gas station lights and flame proof street light. Hazard class division can be extended to class 1 div 2, class 2 division 1 and class 2 division 2 for hazardous locations lighting and zone 1 and zone 2 for atex rating.

Features

Explosion Proof Flood Light SHF-IA Series

01

Solid encapsulation separation for led driver and led lamp housing

110v Led Flood Light

02

Integrated die-cast moduling for dense heat escaping fins

120v Flood Light

03

NPT and metric thread standard for coming cables

120v Led Flood Light

04

Flat glass without lens to wider lighting areas

240v Flood Light

Selection Table

Explosion Proof Flood Light SHF-IA Series

Model Lumens Wattage Lumens per Watt Equivalent HID Luminaire

SHF-IA-20W 2800 20W 140 70-100W

SHF-IA-40W 5600 40W 140 100-150W

SHF-IA-60W 8400 60W 140 175-250W

SHF-IA-80W 11200 80W 140 320-400W

SHF-IA-100W 14000 100W 140 400W

SHF-IA-120W 16800 120W 140 400-600W

SHF-IA-150W 21000 150W 140 400-750W

SHF-IA-200W 28000 200W 140 750-1000W

Now the price of 70w led floodlight, 80 watt led flood light and 120w flood light is reasonable, if you have needs, please contact us.

If you want to know more kinds of ip67 led flood light, ip68 flood light, please visit our website.

As an explosion proof lamp factory, we will do our best to meet all the needs of customers.
