Class I,Div.2,Group A,B,C,D

Zone 1, Zone 2

Class II,Div.1,Group E,F,G

Zone 21, Zone 22

Class III

-40℃ ~ +55℃

Ex eb IIC T6/T5 Gc

Type 4X, IP66

Ex tb IIIC T100℃ Db IP66

LED 20W- 180W,120lm/W,3000K-5000K

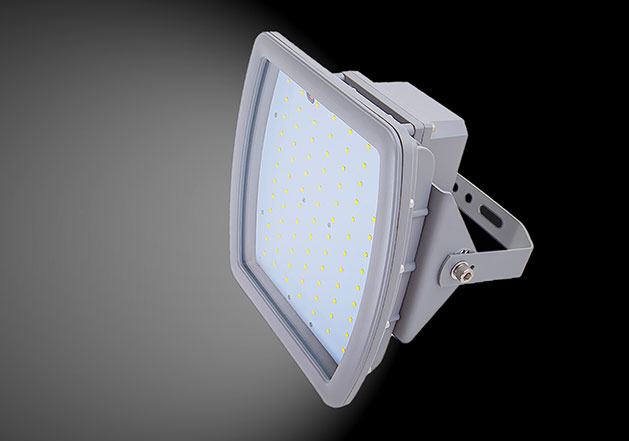

SHF-II series atex floodlight is one of intrinsically safe lighting with bright led explosion lamp to be used for explosion proof led flood light for class 1 div 2 whose hazard class division is not very high in led flood light hazardous area such as paint booth lights, gas station lights. Its class divisions can be also class 2 division 1 and class 2 division 2 as dust explosion proof lighting and zone of light can be applicable for atex rating zone 1 and zone 2.

Features

Explosion Proof Exit Light SHF-II Series

01

Thin housing and light-weight reducing work force

Explosion Proof Led Lighting For Paint Booth

02

Heat control fins for specialized led driver for durable usage

Led Spray Booth Lights

03

Air convection for both sides to decrease the surface temperature

Explosion Proof Led Canopy Lighting

04

Dense led chips units to lessen the negative break-down influence

Explosion Proof Led Work Lights

Selection Table

Explosion Proof Exit Sign SHF-II Series

Model Lumens Wattage Lumens per Watt Equivalent HID Luminaire

SHF-II-20W 2400 20W 120 70-100W

SHF-II-30W 3600 30W 120 100-150W

SHF-II-60W 7200 60W 120 320-400W

SHF-II-80W 9600 80W 120 400W

SHF-II-100W 12000 100W 120 400-600W

SHF-II-120W 14400 120W 120 600-750W

SHF-II-150W 18000 150W 120 750W

SHF-II-180W 21600 180W

Data Sheet

Explosion Proof Flood Light SHF-II Series

If you want to know more kinds of explosion proof exit emergency lights, please visit our website.

As one of light fixture manufacturers, we can provide kinds of explosion proof led light fixtures for sale, if you are interested, please contact us.
