Advantages

Class I Division 2,Group A,B,C,D

Zone 1, Zone 2

Class II Division 1,Group E,F,G

Type 4X, IP66

Class III

Max.200A

Ex d e IIC T6 Gb

Built-in Terminal blocks

Ex tb IIIC T80℃ Db IP66

Aiming to be used in class 1 div 2 for group A, B, C, D and zone 1 for group IIC, the enclosure combination for flame proof aluminum alloy housing(gas group IIC) and increased safety aluminum alloy housing, together with increased safety terminal blocks, formed the suitable Ex de explosion proof panel and explosion proof panelboards, this explosion proof power distribution panel play an significant role in hazardous area control system, especially for usage for explosion proof motor starter and explosion proof motor enclosure.

Features

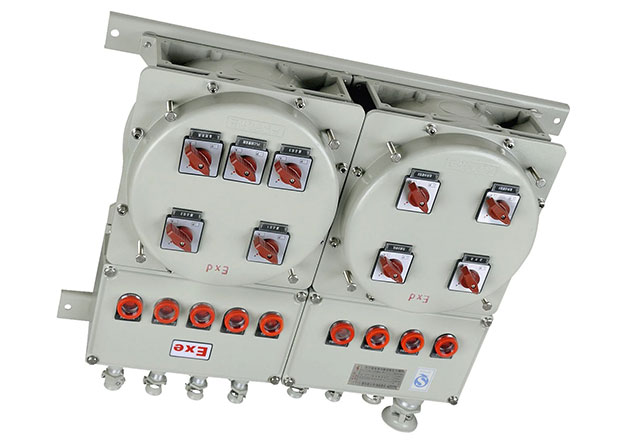

Explosion Proof Panel SPL-de-IIC Series

01

Flame proof Ex d IIC aluminum alloy housing together with electrical breakers, buttons and indicators

02

Increased safety Ex e aluminum alloy housing together with increased safety Ex e terminal blocks

Data Sheet

Explosion Proof Panel SPL-de-IIC Series

Compliaces IEC Standard

IEC60079-0, IEC60079-1, IEC60079-7, IEC60079-31

Ex d e IIC T6 Gb

Ex tb IIIC T80℃ Db IP66

Zone 1, Zone 2

Zone 21, Zone 22

EU Standard

EN60079-0, EN60079-1, EN60079-7, EN60079-31

II 2 G Ex d e IIC T6 Gb

II 2 G Ex tb IIIC T80℃ Db IP66

Zone 1, Zone 2

Zone 21, Zone 22

NEC & CEC Standard

Class I, Div.2, Group A, B, C, D

Class II, Div.1, Group E, F, G

Class III

UL Standard

UL844, UL1598, UL1598A

CSA Standard

CSA C22.2 No.137

Material Copper-free aluminium,grey

Rated Voltage Max.690V AC

Rated Current Max.200A

IP Grade Wet Locations, Type 4X, IP66

Ambient Temperature -40℃~ +55℃ /-40°F ~ +131°F

Cable Entry Metric or NPT thread type plugs (standard) or cable glands

Buite-in Components Main Switch(MCB or MCCB),Branch Switch(MCB or MCCB),Indicator,Terminal etc.
