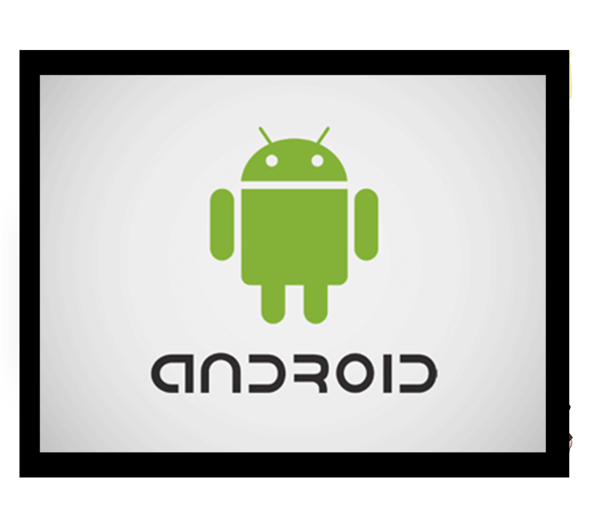

15 Inch Android LCD module

15.0 InchES, 1024XRGBX768, 16.7M COLORS, ANDROID LCM

MODEL: P10768MS150P_T01

P10768MS150P_T01 is an industrial level Android LCM based on Rockchip RK3288 ARM. It is equipped with Quad-core Coretex-A17, supports most decoding solutions under 1080p@60fps, H.265/H.264/MVC/VP8 solutions under 1080p@60fps and many other great features of Rockchip RK3288. Meanwhile, with good jpeg picture processing performance and 3D GPU, it supports OpenGL ES2.0 and 1.1 OpenVG1.1.

RK3288 has high-performance external memory interface (DDR3/DDR3L/LPDDR2) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Proculus Technologies has produced various kind of products such as 15 Inch TFT display, 15 Inch TFT monitor, 15 Inch LCD display, 15 TFT LCD monitor, etc. If you are interested in them and want to know 15 Inch TFT monitor price list, please contact us.

Specifications of 15 Inch Android LCD module

Core Board

CPU 1.8GHz Quad-core A17 ARM

RAM 2GB DDR3

eMMC 8GB

GPU Mali-T764 MP4

Power Management ACT8846 PMU

System Version

Android Android 5.1/8.1

Ubuntu Ubuntu 13.09 (Default system is Android. Need to refresh firmware to choose Ubuntu. Apps need to be developed separately.)

Display

Color 16.7M (16777216) colors, 24-bit color 8R8G8B.

Active Area (A.A.) 304.10 mm(W)×228.10 mm(H), 1024×768.

View Area (V.A.) 307.40 mm(W)×231.30mm(H), 1024×768.

Resolution 1024×768

Backlight LED

Brightness 300nit

Optical Specifications

Item Symbol Condition Min. Typ. Max. Unit

Viewing Angle

(CR≧10) θL Φ=180° (9 o’clock) 85 89 — Degree

θR Φ=0° (3 o’clock) 85 89 —

θT Φ=90° (12 o’clock) 85 89 —

θB Φ=270° (6 o’clock) 85 89 —

Voltage & Current

Item Condition Min. Typ. Max. Unit

Power Voltage 6 12 18 V

Operation Current — — 400 — mA

Power Supply 12V 3A DC (Recommended).

Reliability Test

Item Condition Min. Typ. Max. Unit

Working Temperature 60%RH at 12V voltage -30 25 70 ℃

Storage Temperature — -30 25 85 ℃

Working Humidity 25℃ 10% 60% 90% RH

Protection Paint — — None — —

Interface

Item Condition Min. Typ. Max. Unit

Baud Rate Standard 1200 115200 115200 bps

User Defin 1200 — 115200 bps

Serial Mode Serial Port*5 (4*RS232/TTL, 1*RS485).

User Interface Standard serial communication protocol. 4Pin_2.54mm socket.

USB USB DEBUG*1. USB HOST*8.

Ethernet Support 10m/100m Ethernet.

Wi-Fi Support 802.11b/g/n Wi-Fi wireless network.

4G LTE Module 4G LTE Module/GPS.

Peripherals

Microphone Audio input interface.

Loudspeaker 2-channel, 4Ω/3W loudspeaker.

HDMI HDMI output interface.

IIC Yes

TF card Yes
