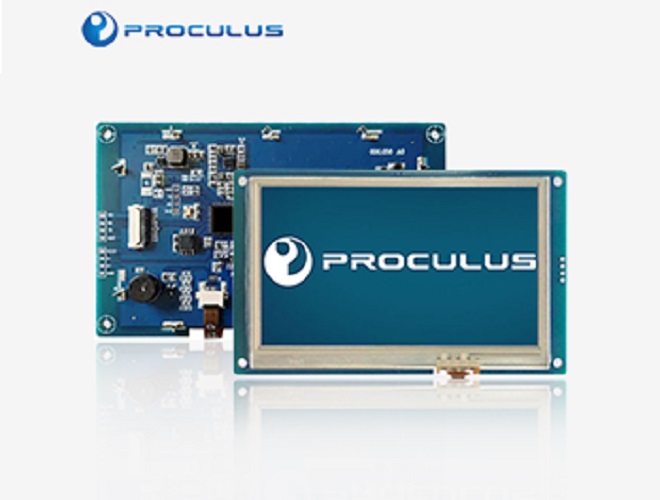

UART TFT LCD Module with UnicView

Based on Proculus display hardware and software, communications between LCMs and MCU are implemented with only 5 simple serial commands, which greatly reduce the complexity and time-cost.

UART TFT LCD Module with UnicView

2.8-18.5 inchTFTLCD Module with P-CP or RTP touch sreen.

Capacitive Touchscreen / Resistive Touchscreen

Automatic Firmware Database Download

Unic View AD automatically downloads the latest Firmware information upon start-up.

Interface Objects that are not supported by the current selected Firmware are disabled.

One-Click PC LCM Project Download

Projects can be downloaded to the LCM via USB or SD Card. It's as easy as clicking "Download".

Users may choose which files (Images. Configurations. Libraries. etc.) to send to the LCM.

Clean Compilation Reports

All files in the project are neatly arranged in a project-based folder structure.

Any errors or warnings are really available to the user.

Interface Objects present on the project that is not supported by the current selected Firmware are notified as warnings.

Advantages of USB LCD Module

High-quality and reliable Hardware.

Intuitive and frequently updated Software.

Simple and easy-to-learn Communication Protocol.

Short Lead-Time.

Well-trained Support Team.

Cost-effective complete GUI Solution.

FAQ of UART LCD Module

Why does P.BOX are priority to purchase?

No matter what size are you targeted in, Proculus (a reliable LCD module manufacturer) highly recommend customers put 2.8" P-Box Starter kits in the cart at the lowest cost to perform with your controller including all accessories that you need. Please read the following link for the starter kit:

How to use UnicView AD?

In the first step, the interface project is designed on UnicView AD software, by importing images, laying out the buttons and views visually, and configuring the LCM parameters. In the second step, the interface project is downloaded into the LCM. In the third step, the LCM is connected to the product's microcontroller, which exchanges data to and from the LCM.
