Superlead Presentation Optical Barcode Reader 7708

Super large scanning window

self-induction image reading

Megapixel, scanning sensitive

Support 6m / s sports reading

Low power consumption and powerful performance

Omni-directional Read main 1D,2D barcode

Details of Superlead Bioptical Optical Bar Reader 7708

New hardware upgrade, equipped with 1.38 million pixel scanning lens.

Super large scanning window, no need to focus, self-induction image reading.

Big vision sensor, large reading range, Easy to read long bar code

Support sports reading, up to 6M/S, sensitive scanning

Support barcode reading without backlight

Multi-languages direct transfer.

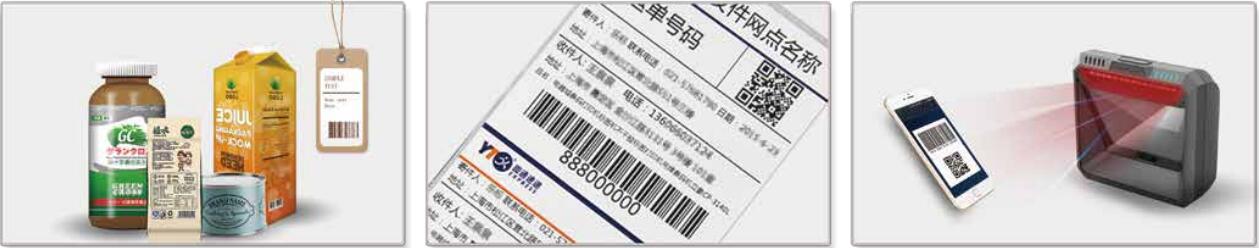

The optical barcode scanner can scan 1D/2D barcodes, support screen codes, as : packaging, labels, express waybill, wechat, alipay, etc.

Application scenarios

shopping malls, supermarkets, restaurants, tea shops, small and micro stores, warehousing and logistics, customer service front desk, etc

Specification of Superlead Bioptical Barcode Reader 7708

Suzhou SuperMax Smart System Co., Ltd. 7708

Technical Specification

Physical Characteristics

Dimensions: 152mm x 149mm x 80mm

Weight: 376g

Voltage: 5 VDC

Current: 500mA(Operating)

Performance Characteristics

Image(Pixels): 1280 p(H) x 1080 p(V)

Light Source: illumination: 617nm RED LED

Fielg of View: 45° (H) x 35° (V)

Roll/Pitch/Yaw: Pitch ±65° /Yaw 360° /Roll ±60°

Motion Tolerances: max. 6m/s / up to 6 meters per second

Print Contrast: ≥25%

Interfaces Supported: USB, RS232

Minimal Resolution: 4mil

Decode Capability: 1-D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc.

2-D: QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc.

User Environment

Operating Temperature: 0℃-50℃

Storage Temperature: -40℃-70℃

Humidity: 0% to 95% relative humidity, non-condensing

Shock Specifications: Designed to withstand 1.2m (5') drops

Ambient Light lmmunity: 100.000 Lux.

Decode Ranges

Code 39 (5mil): 0mm-60mm

100% UPC-A (13mil): 0mm-200mm

Performance may be impacted by bar code quality and environmental conditions.
