Superlead With Bluetooth 5.0 Bluetooth QR Scanner 2620BT

Fixed and mobile solutions to meet a variety of needs

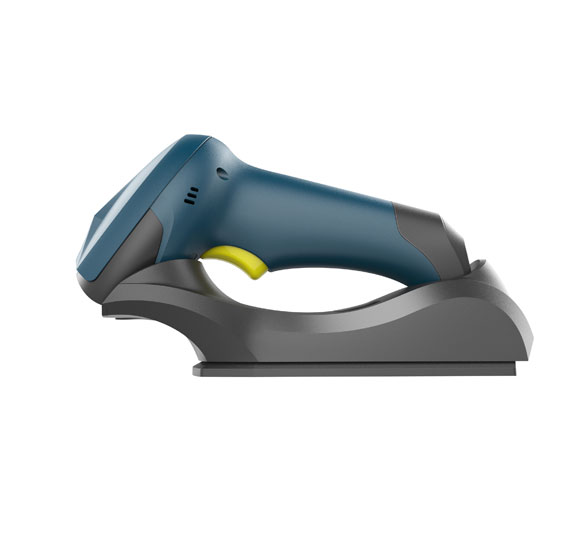

The angle of the base can be changed freely

200m distance communication（Open area）

High capacity battery, optional USB and contact charging

Can Work with Apple iOS,Andriod,Window PC/Tablets.

Comfortable to use, ergonomic design

Omni-directional Read main 1D,2D barcode

Details of Superlead with bluetooth 5.0 bluetooth qr code scanner 2620BT

250m Long Distance Communicantion HD/SR

250m Long Distance Communicantion Bluetooth Wireless Technology

Multiple language barcode message transfer

Super large field of view of the bluetooth 2d barcode scanner

Disinfectant ready, IP42 housing

High speed, omnidirectional reading of 1D, 2D, Postal barcodes and OCR

250-meter working range at open space

Battery replaceable

Reads barcode reliably off cell phone screens

Can work with Apple iOS, Andriod, Window PC/tablets

Specification of Superlead with bluetooth 5.0 bluetooth smart barcode scanner 2620BT

Voltage\Current: 5 VDC +/-10% @ 500 mA

Performance Characteristics

Image (Pixels): 640 pixels (H)x 480 pixels (V)

Light Source: Aiming: 617 nm LED; illumination: 6500K LED

Field of View: 40° (H) x 32° (V)

Roll / Pitch / Yaw: 360°, ±65°, ±60°

Battery volume 4.2v/2500mAh

Charging time 5-6 h

Working time It can scan once every 1 second and work continuously for 12 hours.

Wireless technolngy Bluetooth 4.2

Operation distance 250 meters (open space)

Print Contrast: 25% minimum reflective difference

Interfaces Supported: USB, OTA, RS232

Motion Tolerances up to 25 in. (63.5 cm) per second

Symbology Decode Capability 1-D: UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

2-D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

User Environment

Operating Temperature: -40°C to 70°C

Storage Temperature: 0% to 95% relative humidity, non-condensing

Humidity: Designed to withstand 1.5m(5') drops

Shock Specifications: 0°C to 50°C

Ambient Light Immunity: 100.000 Lux.

Decode Ranges

5 mil (Code 39) 30mm-90mm

13 mil (100% Upca) 40mm-170mm

1D Minimal Resolution 4mil

Performance may be impacted by bar code quality and environmental conditions.

Note: If the above parameters are changed, the latest data shall prevail.
