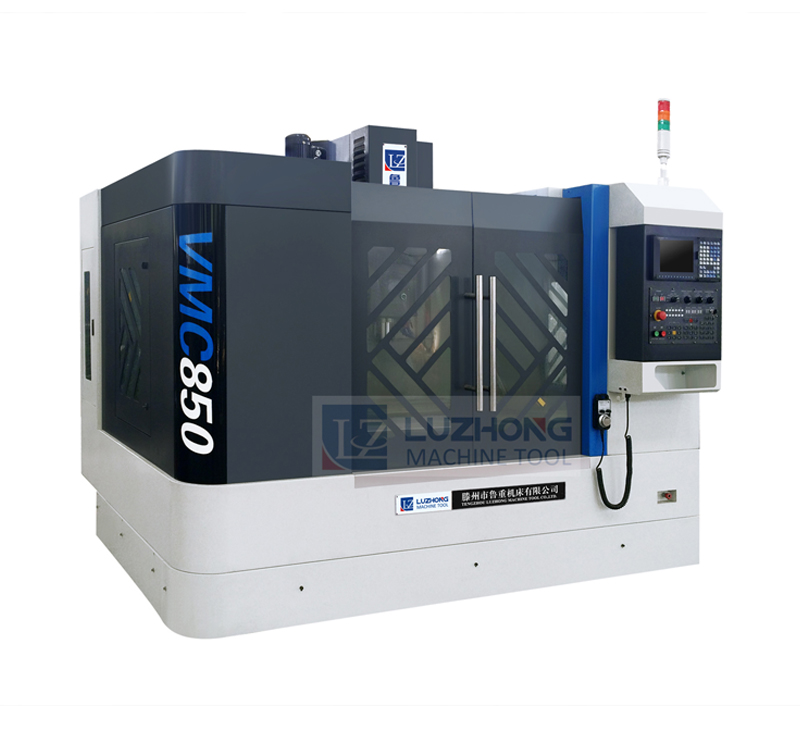

VMC850 CNC Vertical Machining Center

CNC Machining Center

CNC Machining Center Manufacturer China:Tengzhou Luzhong Machine Tool Co., Ltd

Features:

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Japanese NSK bearing germany R+W coupling

Automatic lubrication system

Chip conveyor at optional

 More information you can views here

Application:

This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Product main technical parameters:

specifications unit VMC850

Table size mm 1000x500

X axis travel mm 800

Y axis travel mm 500

Z axis travel mm 500

Distance between spindle

center and column surface mm 571

Distance between spindle nose

and table surface mm 150-650

T slot 3-18*90

Spindle taper mm BT40

Max. spindle speed r/min 8000(10000 optional)

Main motor power kw 7.5

X/Y/Z axis servo motor torque N.M 15/15/18

X/Y/Z motor connection direct

X/Y/Z guide rail form 3 axis linear guide rail

Max.table load kg 500

Automatic tools changer 16 Armless type(optional:24 arm type)

Max.tool weight kg 8

Max. tool length mm 250/350

Max. tool diameter mm 100(Adjacent)/150(Apart)

X/Y/Z axis rapid traverse M/min 24/24/20

Cutting feed speed M/min 10

Position accuracy mm ±0.005

Repeat positioning accuracy mm ±0.003

Machine dimension mm 2800x2300x2700

Machine weight kg 5500
