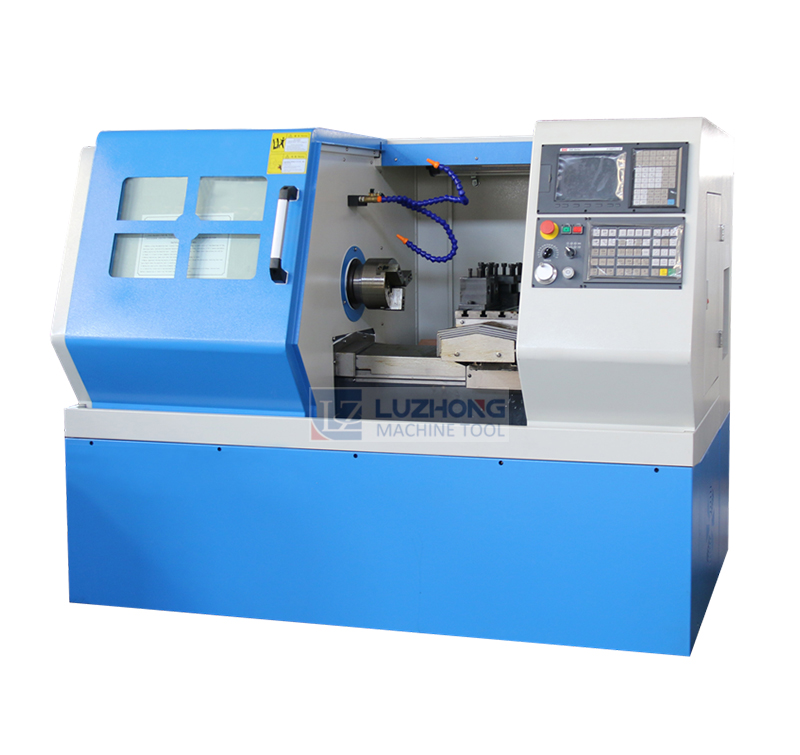

Flat Bed CNC Lathe Machine

CNC Lathe Machine

CNC Lathe Features:

Higher accuracy Taiwan linear guideways

Higher speed spindle unit,Optional homemade spindle

Higher rigidity cast iron

Application:

The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobie,motorcycle,bearoings and so on.

Product main technical specifications:

Specifications Units H36

Max.swing over bed mm 360

Max.swing over cross slide mm 110

Max.processing length mm 250

X/Z axis travel mm 340/250

Spindle nose A2-5

Spindle bore mm 48

Bar capacity mm 38

Max. spindle speed rpm 2500/4000

Chuck size mm 6

Spindle motor KW 4

X/Z axis repeatability mm ±0.003

X/Z axis feed motor torque N.m X:4 Z:4

X/Z axis rapid traverse m/min 15/15

Tool post type 4 gang type tool post

Cutting tool shape size mm 20x20

Guide form Linear guide rail

Total power capacity KVA 8

Machine dimension(LxWxH) mm 2000/1400x1580

Net weight kg 1500
