Model: CFJG-SK-150

Product Performance

Paper Layer: 25 Layers

Inner Diameter: 50-250mm

Wall Thickness: 1-15mm

Winding Speed: 1-25 meters/min

Winding Nose: Four noses double belts

Length Fixing: By Encoder

Cutting Length: 500-5000mm (speed will be low when cutting length < 1000mm)

Cutting Way: Servo Synchronous Tracking Cut

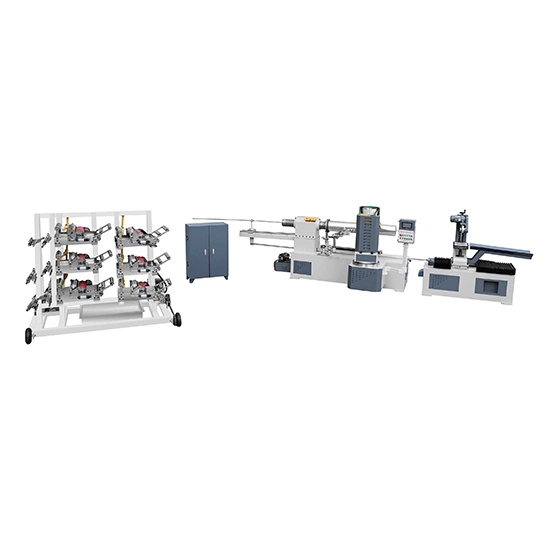

Description of Automatic Spiral Cardboard Core/Paper tube winding machine

Adopting advanced shaft rotation technology, the spiral tube winder is specially designed for manufacturing various paper tubes.

Paper tubes are widely used in the rolling of metal, glass, ceramics, tea packaging, paper, film, and aluminum foil.

Features of Automatic Spiral Cardboard Core/spiral paper tube machine

Low price, strong versatility, and high-performance configuration.

Adopt PLC logic control system.

The main motor uses a vector high-torque frequency converter for speed regulation.

Single photoelectric positioning length control, combined with automatic speed change function, makes the paper tube cutting length more accurate.

Modular electrical layout design makes use, maintenance and repair more convenient and scientific.

It is more convenient to operate with a remote control (for example, this type of paper pipe making machine can remotely stop or slow down the machine when paper breaks).

Low noise transmission design.

Use an independent stainless steel tank for double-sided gluing, and use imported silicone tubes for squeegeeing.

As one of the most professional paper straw and paper tube machines suppliers in China, Chuangfeng brings years of experience and expertise to the table, ensuring reliable and efficient equipment.
