Automotive electrical connections are widely used in every parts of the car. Use with wiring harness, they are able to offer the connection solution between each component with the car well and safe.

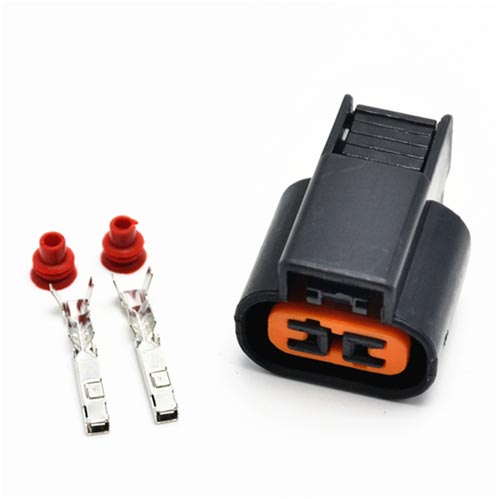

The specification of 2 pin female waterproof electrical connector housing for ABS Sensor Fog Lamp PB625 02027

Item No. Pin Material Color Dimension(mm) Matching terminal Original Code MPQ(pcs)

L W H

DJ7023-2.3-21 2 PBT Black 24.5 21.1 29.6 DJ623-2.2*0.6A PB625-02027 200

Product name 2 pin female waterproof electrical connector for ABS Sensor Fog Lamp PB625-02027

Item No. DJ7023-2.3-21

Original code PB625-02027

Material Housing: PBT; Terminal: Copper Alloy, Brass, and Phosphor Bronze.

Male or Female Female

Number of Positions 2 Pin

Sealed or Unsealed sealed

Color White and Black

Operating Temperature range -40℃~120℃

Application sensor fog lamp connector

Function Automotive Electrical Wiring Harness

Production process Injection, pressure welding, soldering

Certificates TS16949 system and RoHS, REACH.

The Other Notes Of 2 Pin Female Waterproof Electrical Connector Housing For Abs Sensor Fog Lamp Pb625-02027
