With the 30 years of mold manufacturing experience, Langrun is capable of product development and mould processing. We pay more attention to quality control and control the quality strictly. Our car electrical connections products are well-know and get a good reputation among the customers in the world.

The specification of AMP 282080-1 male automotive connector housing

Item No. Pin Material Color Dimension(mm) Mating terminal Mating wire seal Original Code Min Package(pcs)

L W H

DJ7021-1.5-21 2 PA66 Black 13 6.9 26.7 DJ624-1.8 MFD006-4 282080-1 20

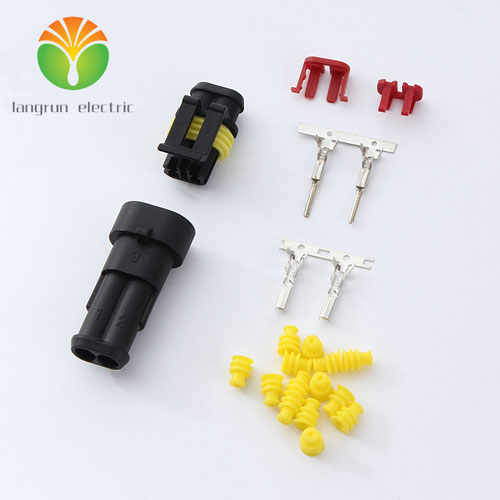

Product name AMP 282080-1 male automotive connector and housing

Item No. DJ7021-1.5-21

Original code AMP 282080-1

Material Housing: PA66+GF; Terminal: Copper Alloy, Brass, Phosphor Bronze.

Male or Female Female

Number of Positions 2 Pin

Sealed or Unsealed Sealed

Color Black

Operating Temperature range -40℃~120℃

Function Automotive Electrical Wiring Harness

Production process Injection, pressure welding, soldering

Certificates TS16949 system and RoHS.

The Other Notes Of 282080-1 male automotive connector housing
