With the 30 years of mold manufacturing experience, Langrun is capable of product development and mould processing. We pay more attention to quality control and control the quality strictly. Our car electrical connections products are well-know and get a good reputation among the customers in the world.

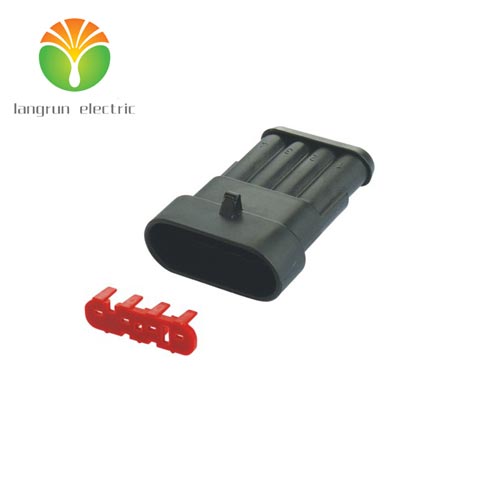

282106-1 female fuel tank pump connector is 4 pin waterproof connectors. Super seal Connector is waterproof connector ideal for use in the automotive industry. It can meet the increasing requirements for reliability and waterproof. At the same time, this super seal connector is widely used to install work lights/ LED lights on vehicle exteriors. The quick and easy interlock mechanism between male and female units provides simple connection and de-connection when needed. This allows for rapid and stress free installation and replacement of lights saving time and effort. The applicable wire size range is from 0.5 to 1.5mm2.

The advantages of 282106-1 female fuel tank pump connector housing

1.Sealing reliability proven under harsh conditions.

2.Designed for ease of manual harness assembly, engine mounting and under hood environments.

Applications of 282106-1 female fuel tank pump connector housing

1.Wire to wire (1.5mm) and ECU applications, under hood or any location where sealing is required.

2. Suitable for automotive, truck, bus or off-road vehicles.

The specification of 282106-1 female fuel tank pump connectors superseal waterproof connector housing

Item No. Pin Material Color Dimension(mm) Matching terminal Matching wire seal Original Code MPQ(pcs)

L W H

DJ7041-1.5-11 4 PA66+GF Black 32 17 42 DJ611-1.5*0.8 MFD006-4 282106-1 200

Product name 282106-1 female fuel tank pump connectors superseal waterproof connector

Item No. DJ7041-1.5-11

Original code 282106-1

Material Housing: PA66+GF; Terminal: Copper Alloy, Brass, and Phosphor Bronze.

Male or Female Female

Primary Locking Feature Integrated in Housing

Connector System Wire-To-Wire

Vominal Voltage Architecture (V) 12 (Reference Value)

Operating Voltage (VDC) 12 (Reference Value)

Insulation Resistance 100MΩ Min

Number of Positions 4 Pin

Sealed or Unsealed Sealed

Color Black

Operating Temperature range -40℃~120℃

Feature Plug housings for receptacle contacts, cap housings and tab contact variants; Pre-assembled secondary lock.

Application widely used to install work lights/ LED lights on vehicle exteriors.

Function Automotive Electrical Wiring Harness

Production process Injection, pressure welding, soldering

Certificates TS16949 system and RoHS, REACH.
