X4 Pipeline Sonar Sewer Inspection Equipment/System is mainly used for the detection of water-carrying pipes (full water or above 2/3 of the water level), inspection wells, or underground cavities. It automatically analyzes and extracts the inner wall contour, establishes a three-dimensional model, and performs the quantitative analysis.

X4 Pipe Sonar System Main Parts

Sonar Probe

Size: total length: 485mm, diameter: 70mm;

Material: aluminum alloy shell;

Waterproof: IP68;

Operating temperature: 0~40℃;

Storage temperature: -20~70℃;

Weight in air: 2.7kg;

Acoustic frequency: 1MHz;

Beam width: 1.1deg (-3db), conical beam;

Range resolution (0.125m range) : 0.5mm;

Maximum applicable pipe diameter: 6000mm;

Transmitting pulse width: 4~20us;

Receiving bandwidth: 500KHz;

Power supply: 48V dc;

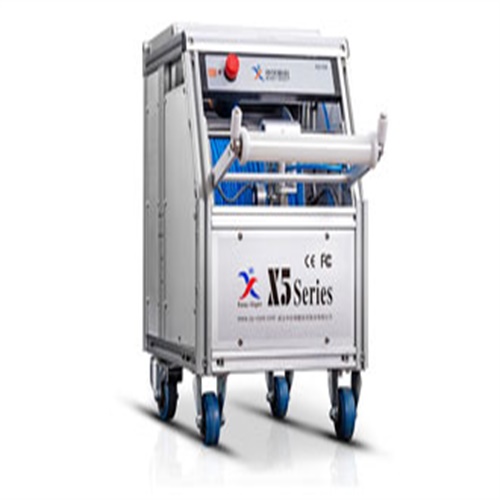

Cable Reel

Cable length: 150m (customizable)

Motor-driven

2-pin cable, drawing anti-Kevlar 300 kg, imported polyurethane sheath, cable diameter
