Customized solutions for finished tube parts:

The cutting requirements of finished pipe fittings are different for different products, so we need to customize professional solutions for finished parts fiber laser cutting machine to meet customers' needs.

Advantages of Custom China Fiber Laser Cutter

Facing the characteristics of finished tube parts, choosing a standard pipe cutting machine will cost more, but using a customized laser tubing cutter can meet requirements and save costs.

Flexible Design

Not only according to the customer's product characteristics, but also according to the customer's requirements for the appearance, size, and auxiliary functions of the equipment to design a customized tube cutting machine.

Diversified Cutting Functions

Whether it is a short conventional formed tube, or a bent or shaped tube, all custom metal laser cutting machine solutions can be provided.

Flexible Automated Laser Cutting Operation

The professional CNC cutting system has flexible system openness, so loading and unloading can be completed by matching a customized three-dimensional robot. Realize industry 4.0 automated production.

Application of Finished Parts Tube Cut to Length Machine

Application Of Finished Tube Laser Cutting Machine1

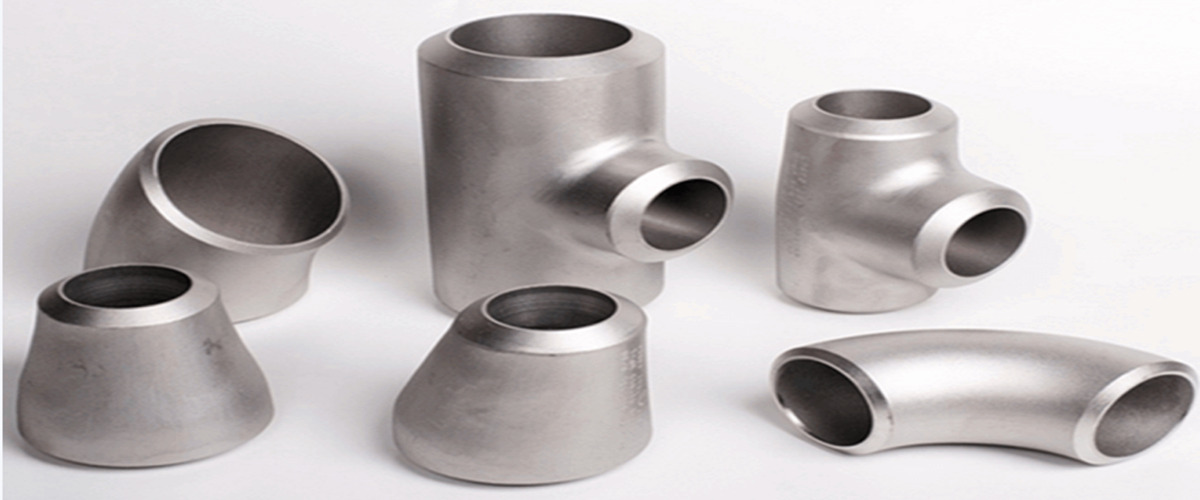

Elbow and fittings cutting:

The simple laser tube cutting machine is more difficult to cut elbow fittings due to abnormal pipe types. However, the finished tube parts cutting machine can realize requirements of elbow and fittings through a customized clamping device.

Application Of Finished Tube Laser Cutting Machine2

Metal trolley:

Only need to perform shape cutting on the surface of the tube assembly of the metal trolley. It has the characteristics of uniform specifications and batches, which is very suitable for using a finished tube parts laser cutting machine.

Application Of Finished Tube Laser Cutting Machine3

Outdoor tent:

Generally, the tent frame adopts similar square and round pipe fittings for casing splicing, and the positions of the pipe butt holes are uniform. Therefore, matching two jaws to clamp both ends of the material for processing can improve accuracy.

Technical Data Of Finished Parts Tube Laser Cutting Machine

Model name T2000

Maximum processing length 2000mm(customizable）

Workpiece length 0-2000mm

Tube diameter range 20-100mm(customizable）

Type of tube Round tube, square tube, rectangular tube, oval tube, etc.

Single tube bearing weight 8kg/m

Laser source IPG/ nLIGHT/ Raycus

Laser power 500W-2000W

X Y axis maximum acceleration 0.8g

Repeatability ±0.03mm

Auto feeder Industrial robot (Optional)

Equipment dimensions (length × width) 3500mm*1500mm

Equipment weight 2T

Capacities

Material 1000W 1500W 2000W 2500W 3000W 4000W 6000W

Carbon steel 6 10 12 14 16 20 25

Stainless steel 4 6 8 10 10 12 16

Galvanized steel 3 5 6 8 8 10 12

Aluminum 3 4 5 6 6 10 16

Brass 2 3 4 5 5 8 10

Copper 1 2 2 3 3 4 6

If you want to know more kinds of fiber laser cutting machine parts, please visit our website.
