CNC Turning

CNC Turning is also called cnc lathing. The high quality China CNC turning is a manufacturing process in which bars of workpiece are held in place and rotated by the main spindle while a cutting tool is fed to cut the material to create the shape and size as per the drawing’s specifications.

Why using CNC turning machining service?

China cnc turning service is now widely used for the processing of parts, such as cutting, grooving, drilling, reaming, reaming&boring. What are the main advantages of china cnc turning services?

1. The quality is stable and the precision is high.

2. CNC lathing can be multi-coordinate linkage, and can process parts with complex shapes.

3. CNC turning is processed according to the programmed program. If the design of the part changes, it only needs to modify the program, which saves time and labor.

4. High degree of automation, High efficient, High Precision,and Cost Saving. , and has high precision reducing manual labor.

Why Choose Us As Your China CNC Turning Services Supplier?

As one of professional cnc turning machining factories for over ten years, YS is equipped with over 30sets advanced precise turning machines including CNC turning machine, CNC turn-milling machine and automatic turning machines. We can use CNC Turning service to produce product prototypes and mass production parts quickly and precisely.

A wide ranges of different materials can be machined in our CNC lathing workshop, such as ABS, PP, Nylon, Ultem, Peek, PMMA, PC, PTFE, Aluminum, brass, bronze, zinc alloy, stainless steel, and many other materials.

With our advanced machining centers, and of course the experienced engineering & inspection team, your CNC turned parts will be completed with high quality on schedule in our cnc turning machining factory.

The Difference Between CNC Milling Service And CNC Turning Service

The working principle is different.

CNC Turning is the rotation of the workpiece, and the CNC milling in China is the rotation of the cutting tool. A cnc lathe is mainly uses a turning tool to turn a rotating workpiece.

Generally, the turning tool is fixed at a certain position on the machine tool, and the workpiece rotates along the axis under the clamping of the fixture, and is cut when it is close to the knife edge, so it is mainly suitable for machining shafts, discs, sleeves and other workpieces with rotating surfaces. .

The programming method is different.

Determined by the working method, CNC lathing programming only needs to input two coordinates, milling machine needs to input 3 coordinate

The scope of work is different.

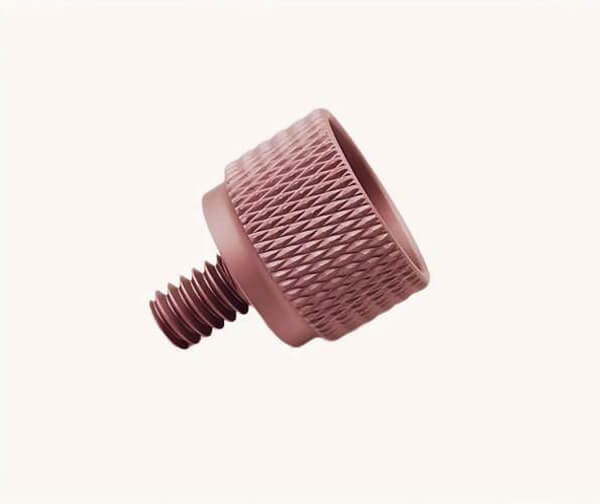

CNC lathing can be used to process various rotary forming surfaces, such as intern6/al and external cylindrical surfaces, internal and external conical surfaces, internal and external threads, as well as end faces, grooves, knurling, etc.

CNC Milling can process plane surfaces (horizontal, vertical), grooves (slot, T-slots, dovetail grooves, etc.), gear parts, helical surfaces (threads, spiral grooves) and various kind of curved surface.

The Process of CNC Lathing/CNC Turning

Analyze part drawings Compare the specifications, performance and functions of the CNC lathe machine with the geometry and dimensions of the parts, and check whether they meet the requirements.

Analyze the process In the process of CNC lathe processing, it cannot be adjusted manually like ordinary lathe machines, so an economical and reasonable process plan must be formulated in advance. It mainly includes the determination of part positioning and fixtures, machining sequence, tool paths, tools, cutting parameters, heat treatment methods, calibration and auxiliary processes.

Mathematical processing of graphics establish the workpiece coordinate system and perform necessary calculations, such as obtaining the coordinates of the center point and the end point.
